Ballast Connect 6x600w Digital Light Controller
R6,299.00
Available on back-order
Description

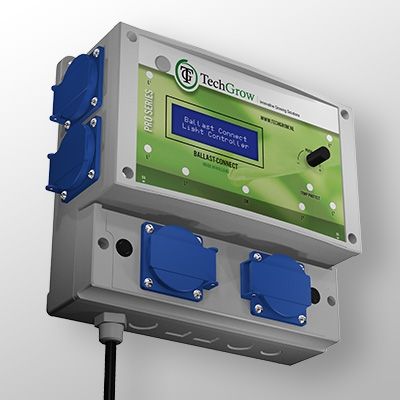

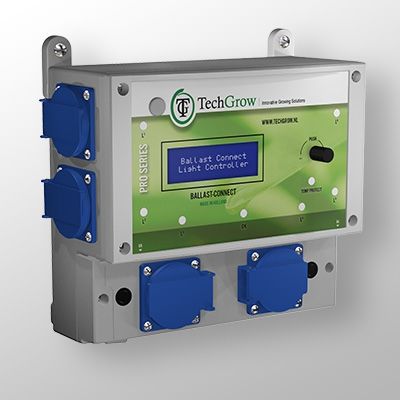

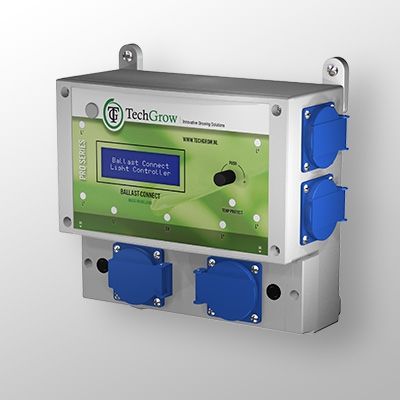

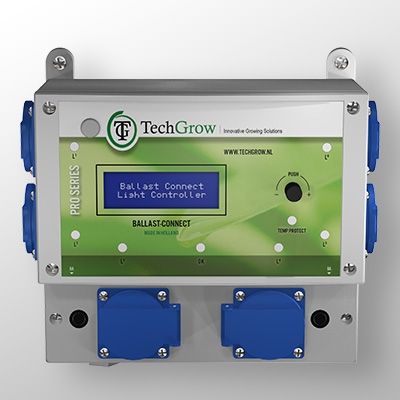

Ballast Connect 6x600w Digital Lighting Controller
The Ballast Connect 6x600w is a digitally controlled relay controller, that controls up to six lights at a maximum of 3600W. Each 4A outlet is individually controlled by hybrid relays that switch on every 5 seconds during the switching moment.
The Ballast Connect also has a start-up delay in the event of a power failure, and its built-in log function allows you to check the duration and the time of the power outage. The information stores automatically, thanks to the built-in battery. For additional control, it can be connected to a temperature probe for temperature protection and also has an ammeter to prevent overloading.
Ballast Connect comes without a temperature probe.
Ballast Connect 6x600w Key Features
- Completely Noiseless
- Lamps are switched individually
- 2 digital clocks (24-hour/asymmetric)
- Adjustable temperature protection
- In case of overheating, the lamps switch off one by one (maximum 5)
- Built-in ammeter
- Adjustable amperage limit for overloading protection
- Adjustable switch-on delay
- All settings save in the event of a power failure
- Display for minimum/maximum temperature
- Compatible with Techgrow temperature probes
Sensor advice
Compatible sensor
Temp probe 2M & 10M
Non compatible sensors
Temp-RH
All S-4 sensors
Dimensions
Product dimension
24cm x 10cm x 21cm (HxWxD)
Product weight
1670g
Package dimension
24cm x 14.5cm x 28cm (HxWxD)
Package weight
2089g
Box content
- Ballast Connect
- Mounting kit
- 2 Spare fuses
- User manual
- (Temp Probe not included)
Additional information
| Weight | 2.09 kg |
|---|---|
| Dimensions | 25 × 14.5 × 28 cm |
| Key Functions | Controls: Lightning |
| Software Functions | Timers: 2 digital clocks 24H & Asynchronous |
| Power Supply | Input: 110 – 220v |
| Contactor Details | No Contactor |
| Relays Details | Number of relays: 6 |
