Ballast Connect Micro Light Controller 2x600W- TechGrow

R3,999.00

In Stock with Supplier

The Micro edition of the Ballast Connect, our relay controller that controls up to two lights at a maximum of 2000W. Each 24A outlet is individually controlled by hybrid relays that switch on every 5 seconds during the switching moment.

View Product

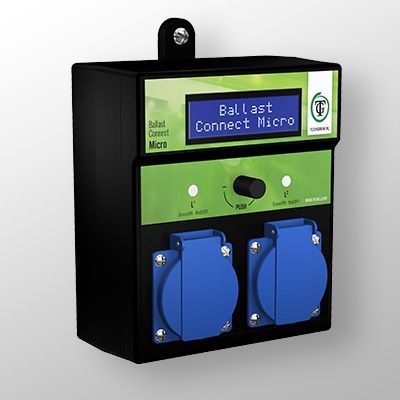

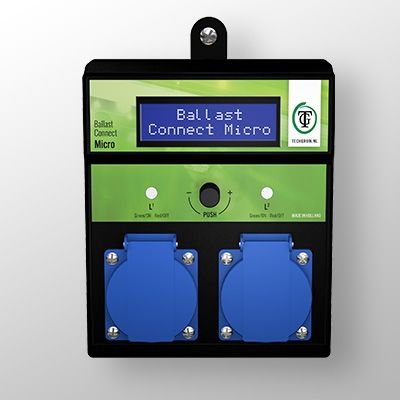

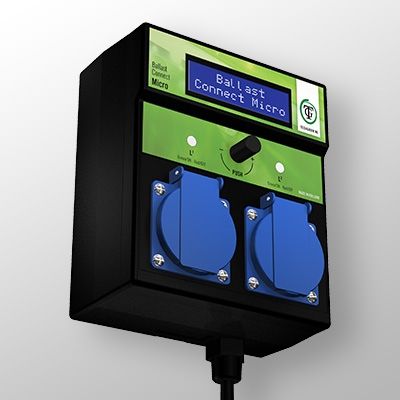

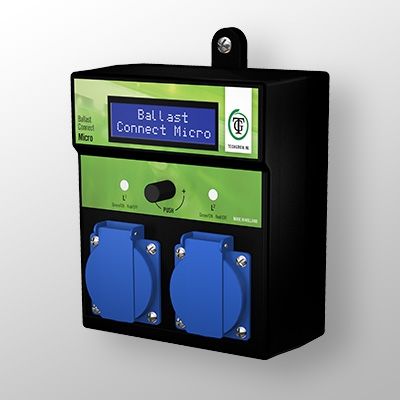

Ballast Connect Micro 2x600w

The Ballast Connect Micro 2x600w is a digitally controlled light controller, that controls up to two lights at a maximum of 2000W. Each 24A outlet is individually controlled by hybrid relays that switch on every 5 seconds during the switching moment.

The Ballast Connect Micro also has a start-up delay in the event of a power failure, and its built-in log function allows you to check the duration and the time of the power outage. The information stores automatically, thanks to the built in battery. For additional control, it can be connected to a temperature probe for temperature protection. It also has an ammeter to prevent overloading.

Ballast Connect Micro comes without a temperature probe.

Ballast Connect Micro Key Features:

  • Quiet Operation
  • Lamps are switched individually
  • 2 digital clocks (24-hour/asymmetric)
  • Adjustable temperature protection
  • In case of overheating, one lamp is switches off
  • Built-in ammeter
  • Adjustable amperage limit for overloading protection
  • Adjustable switch-on delay
  • All settings save in the event of a power failure
  • Display for minimum/maximum temperature
  • Compatible with Techgrow temperature probes

Sensor advice

Temp probe 5M

Compatible sensor
Temp probe 2M & 10M

Non compatible sensors
Temp-RH
All S-4 sensors

Dimensions

Product dimension
18cm x 7cm x 13cm (HxWxD)

Product weight
760g

Package dimension
15cm x 14cm x 25cm (HxWxD)

Package weight
916g

Box content

  • Ballast Connect Micro
  • Mounting kit
  • Spare fuse
  • User manual
  • (Temp Probe not included)

Additional information

Weight 0.916 kg
Dimensions 15 × 15 × 25 cm
Key Functions

Controls: Lighting
Measure/displays: Switching times, Temperature
Display characters: 2 x 16
Temperature protection: Yes
Individual relays switching: Yes
Battery: Built in
Switching sound: Silent – No noise

Software Functions

Timers: 2 digital clocks 24H, Asynchronous
Event logs: No
Power failure protection: 0 – 300min
Date & time settings: dd-mmm-yyyy hh:mm

Power Supply

Input: 110 – 220v
Power output: 100 – 220 volt
Internal use: 3 Watt
Fuse: 1 x 10 Amp (slow)
Power cord: 3 x 1.5mm
Sockets: 2 x 600W

Contactor Details

No Contactor

Relays Details

Number of relays: 2
Relays switching capacity: 8 Amp
Relays rating: AC-5a
